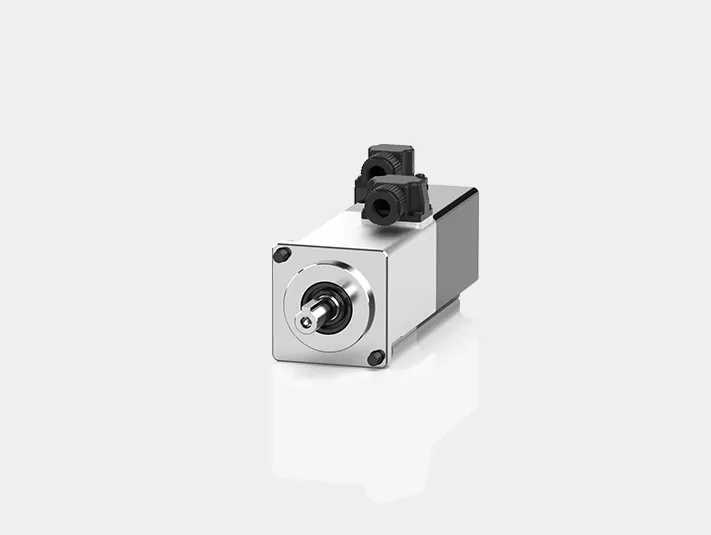

X2 Series Servo Motor

อุปกรณ์เสริม X2 Series Servo Motor รุ่น X2-MA low inertia, X2-MM medium inertia, X2-MMS medium inertia, high speed, X2-MH high inertia, X2-MHH ultra-high inertia, X2-MQ flat / small flange

ขอใบเสนอราคา LINE @TWTROBOT

สเปค X2 Series Servo Motor

Series	Model	Power	Flange (mm)	Rated [peak] torque (N·m)	Inertia no brake [brake]	Rated [max] speed (rpm)
X2-MA low inertia	X2MA010A	100 W	□40	0.32 [1.12]	0.041 [0.042]	3000 [6500]
X2-MA low inertia	X2MA020A	200 W	□60	0.64 [1.91]	0.16 [0.17]	3000 [6000]
X2-MA low inertia	X2MA040A	400 W	□60	1.27 [3.82]	0.28 [0.29]	3000 [6000]
X2-MA low inertia	X2MA060E	600 W	□110	1.91 [5.73]	3.1 [4.2]	3000 [5000]
X2-MA low inertia	X2MA075A	750 W	□80	2.39 [7.16]	0.96 [1.07]	3000 [6000]
X2-MA low inertia	X2MA090E	900 W	□110	2.86 [8.6]	4.5 [5.6]	3000 [5000]
X2-MA low inertia	X2MA100A	1.0 kW	□100	3.185 [9.55]	2.03 [2.35]	3000 [5000]
X2-MA low inertia	X2MA120E	1.2 kW	□110	4 [12]	5.9 [7]	3000 [5000]
X2-MA low inertia	X2MA150A	1.5 kW	□100	4.77 [14.3]	2.84 [3.17]	3000 [5000]
X2-MA low inertia	X2MA150E	1.5 kW	□110	4.77 [14.3]	7.3 [8.4]	3000 [5000]
X2-MA low inertia	X2MA180E	1.8 kW	□110	5.73 [17.2]	8.6 [9.7]	3000 [5000]
X2-MA low inertia	X2MA200A	2.0 kW	□100	6.37 [19.1]	3.68 [4.01]	3000 [5000]
X2-MM medium inertia	X2MM100A	1.0 kW	□130	4.77 [14.3]	6.18 [7.4]	2000 [3000]
X2-MM medium inertia	X2MM150A	1.5 kW	□130	7.16 [21.5]	9.16 [10.4]	2000 [3000]
X2-MM medium inertia	X2MM200A	2.0 kW	□130	9.55 [28.6]	12.1 [13.3]	2000 [3000]
X2-MMS medium inertia, high speed	X2MM100S	1.0 kW	□130	4.77 [14.3]	9.16 [10.4]	2000 [5000]
X2-MMS medium inertia, high speed	X2MM150S	1.5 kW	□130	7.16 [21.5]	12.1 [13.3]	2000 [5000]
X2-MMS medium inertia, high speed	X2MM200S	2.0 kW	□130	9.55 [28.6]	16.85 [18.05]	2000 [5000]
X2-MH high inertia	X2MH005A	50 W	□40	0.16 [0.56]	0.038 [0.042]	3000 [6500]
X2-MH high inertia	X2MH010A	100 W	□40	0.32 [1.11]	0.071 [0.074]	3000 [6500]
X2-MH high inertia	X2MH015A	150 W	□40	0.477 [1.43]	0.13 [0.133]	3000 [6000]
X2-MH high inertia	X2MH020A	200 W	□60	0.64 [2.23]	0.29 [0.31]	3000 [6500]
X2-MH high inertia	X2MH040A	400 W	□60	1.27 [4.46]	0.56 [0.58]	3000 [6500]
X2-MH high inertia	X2MH075A	750 W	□80	2.39 [8.36]	1.56 [1.66]	3000 [6000]
X2-MH high inertia	X2MH100A	1.0 kW	□130	4.77 [14.3]	30.8 [32]	2000 [3000]
X2-MH high inertia	X2MH150A	1.5 kW	□130	7.16 [21.5]	38.5 [39.7]	2000 [3000]
X2-MHH ultra-high inertia	X2MH010H	100 W	□40	0.32 [1.11]	0.092 [0.095]	3000 [6500]
X2-MHH ultra-high inertia	X2MH020H	200 W	□60	0.64 [2.23]	0.47 [0.49]	3000 [6500]
X2-MHH ultra-high inertia	X2MH040H	400 W	□60	1.27 [4.46]	0.73 [0.75]	3000 [6500]
X2-MHH ultra-high inertia	X2MH075H	750 W	□80	2.39 [8.36]	3.15 [3.2]	3000 [6000]
X2-MQ flat / small flange	X2MQ010A	100 W	□60	0.32 [0.96]	0.14 [0.16]	3000 [6500]
X2-MQ flat / small flange	X2MQ020A	200 W	□80	0.637 [1.91]	0.47 [0.5]	3000 [6500]
X2-MQ flat / small flange	X2MQ040A	400 W	□80	1.27 [3.82]	0.87 [0.9]	3000 [6500]
X2-MQ flat / small flange	X2MQ100E	1.0 kW	□80	3.185 [11.13]	2 [2.1]	3000 [6000]
X2-MG low speed, high torque	X2MG075A	750 W	□80	4.77 [14.3]	2.88 [3]	1500 [2000]
X2-MG low speed, high torque	X2MG100A	1 kW	□130	9.55 [28.6]	12.1 [13.3]	1000 [1500]
X2-MG low speed, high torque	X2MG085A	850 W	□130	5.41 [16.2]	14 [15.2]	1500 [3000]
X2-MG low speed, high torque	X2MG130A	1.3 kW	□130	8.28 [24.84]	20.2 [21.4]	1500 [3000]
X2-MG low speed, high torque	X2MG180A	1.8 kW	□130	11.5 [34.5]	26 [27.2]	1500 [3000]
X2-MG low speed, high torque	X2MG230A	2.3 kW	□130	15 [33]	12.7 [14.2]	1500 [2000]
X2-MGS low cogging (cutting)	X2MG085S	850 W	□130	5.39 [16.2]	13.9 [16]	1500 [4000]
X2-MGS low cogging (cutting)	X2MG130S	1.3 kW	□130	8.28 [24.84]	19.9 [22]	1500 [4000]
X2-MGS low cogging (cutting)	X2MG180S	1.8 kW	□130	11.5 [34.5]	26 [28.1]	1500 [4000]

ข้อมูลทั่วไป

แรงดันไฟ

220 V

ที่มาของข้อมูล: ข้อมูลสินค้าของ TWT Enterprise. สเปคจากเอกสารผู้ผลิตฉบับล่าสุดที่ TWT ได้รับ ค่าอาจเปลี่ยนตามรุ่นปีผลิต โปรดยืนยันกับทีมขายก่อนสั่งซื้อ

คำถามที่พบบ่อย

ขอราคา X2 Series Servo Motor ได้อย่างไร

กรอกแบบฟอร์มขอใบเสนอราคาในหน้านี้ หรือแอด LINE @TWTROBOT ทีมขายจะส่งใบเสนอราคาให้
